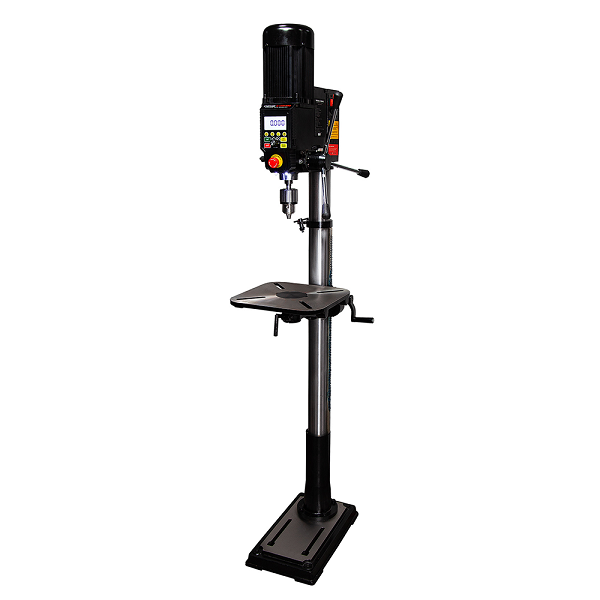

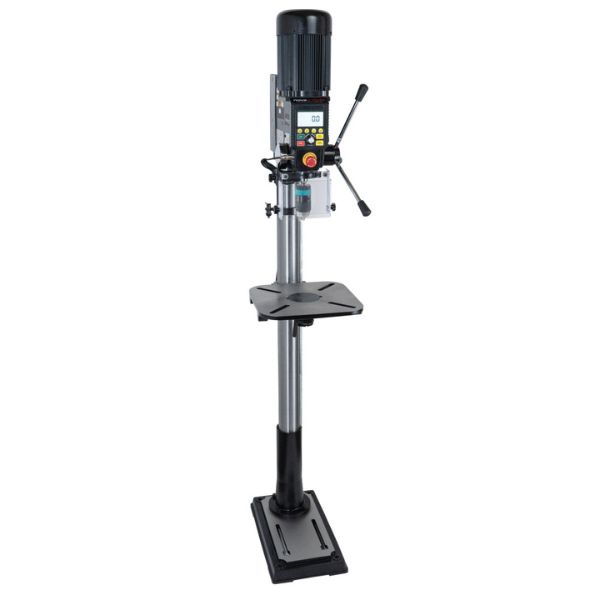

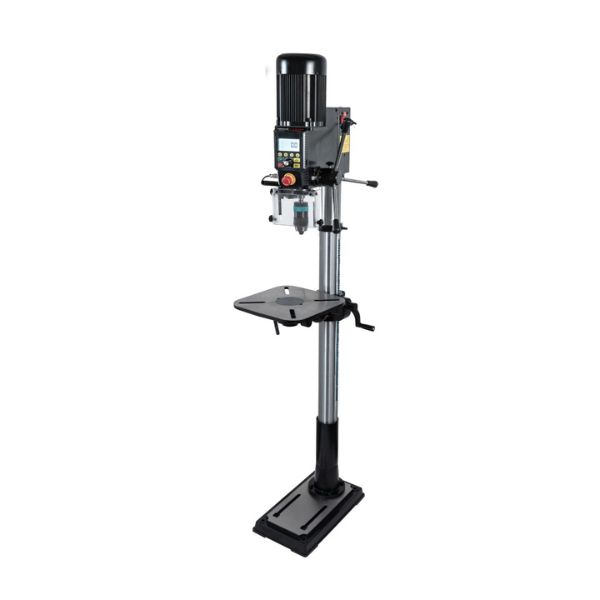

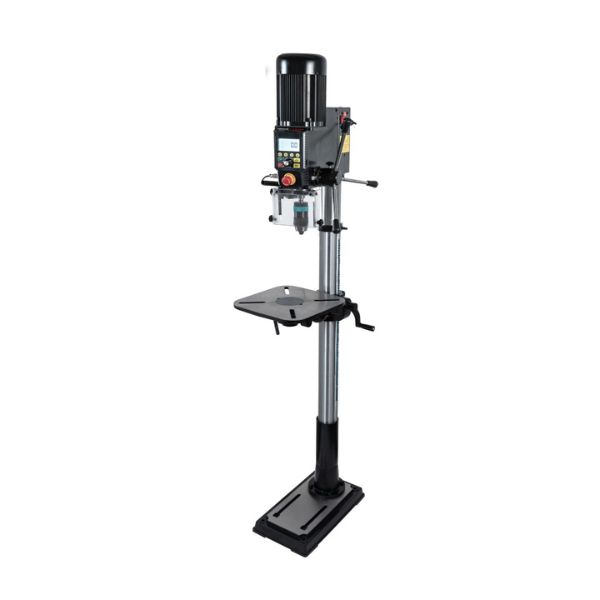

NOVA's latest machine is a 16” DVR Benchtop Drill Press. The NOVA Viking is a 1HP, 150-3,000 RPM (programmable to 5,000) electronic variable speed machine, with a large easy to read display and a variety of intelligent features such as Auto Start feature for one handed drilling and Electronic Depth Stop. The built in LED lights make it easy to see clearly when working. The table can also be tilted and rotated to suit your project.

Direct Drive Power and Consistent Torque: 1HP DVR Smart Digital Motor delivers correct speed and power to maintain optimal torque direct to the drill head – across the entire speed range. No belts or pulleys to cause vibration or power loss. A belt and pulley system absorb typically 20% of the motor power before it even gets to the tool. The DVR motor delivers constant torque with all materials.

Smart Digital Motor: Smart sensors interacting in a number of ways – safety, intelligence workshop assist, and performance

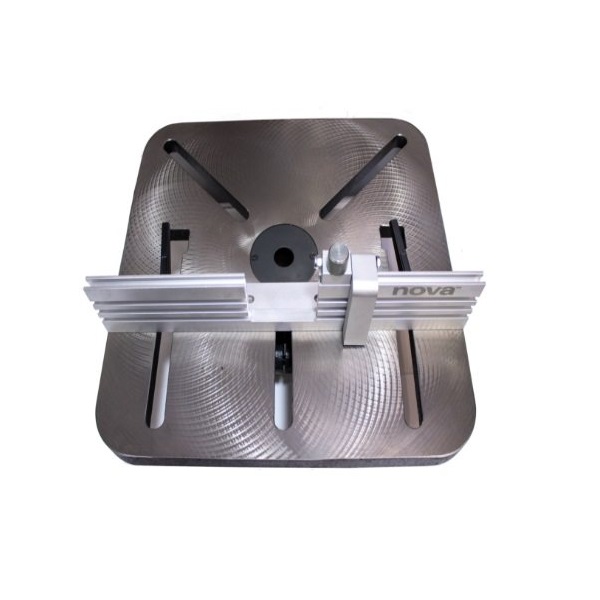

Cast Iron Woodworking Table: Solid Cast Iron for maximum stability. Maximum flexibility and options. Woodworking design to provide maximum clamping and accessory options. 12 2/3″ x 12 2/3″ (320mm x 320mm) Tilting and Rotating

Electronic Variable Speed: 150 – 3,000 RPM (programmable to 5,000 RPM) Versatile for a variety of projects – Large deep hole drilling, mortising, high speed sanding.

Forward and Reverse: For LH drill bits, gives you more flexibility for projects.

Electronic Depth Stop: Quickly and accurately automatically stops to the depth you program for your project. Precision drilling.

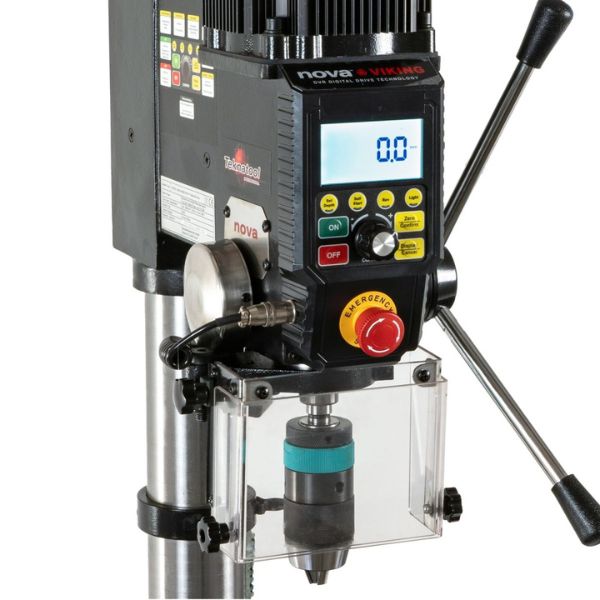

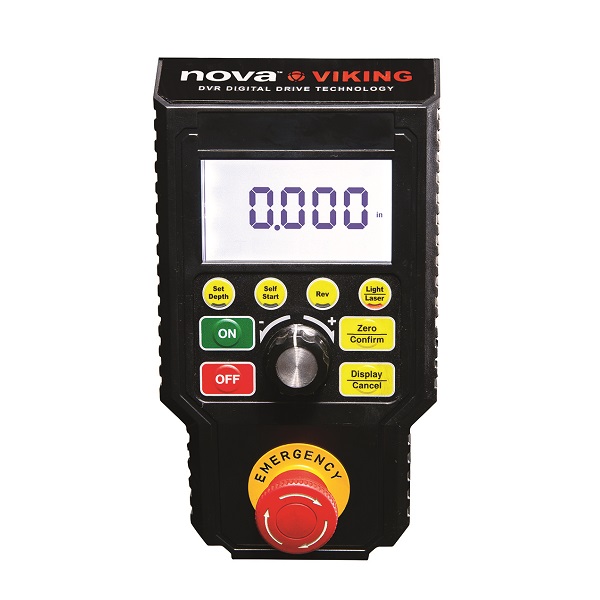

Display Screen: Large, easy to read display with choice of metric or imperial (fractions or decimal). Easy to switch between modes.

Self Start and Braking: Enables a one-handed drilling operation by automatically turning on and off.

Specifications

• Swing: 16” (406mm)
• Stroke/Spindle Travel: 4.5” (114mm)
• Spindle Speeds: Variable
• Speed Range: 150 - 5,000 RPM
• Spindle Taper: MT2
• Max. Distance Spindle to Table: 26 5/8” (676mm)
• Max. Distance Spindle to Base: 46 3/4” (1,187mm)
• Table Size: 12 2/3” (320mm) x 12 2/3” (320mm)
• Table Tilt: - 45° to 45°
• Table Rotation: 360°
• Chuck Size: 5/8” (1-16mm)
• Column Diameter: 3” (78mm)
• Unit Size (LxW): 72” (1,829mm) x 19” (483mm)
• Motor: DVR High Torque Motor, Electronic Variable Speed. 1 HP Drive; Single Phase.
• Rated Electrical Parameters: 110-120V/15A or 220-240V/10A, 1HP

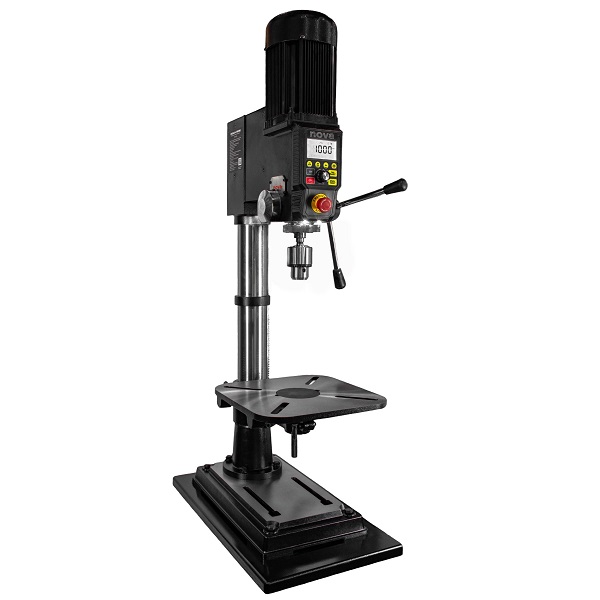

Also available as a bench mounted unit - see TR83704.
