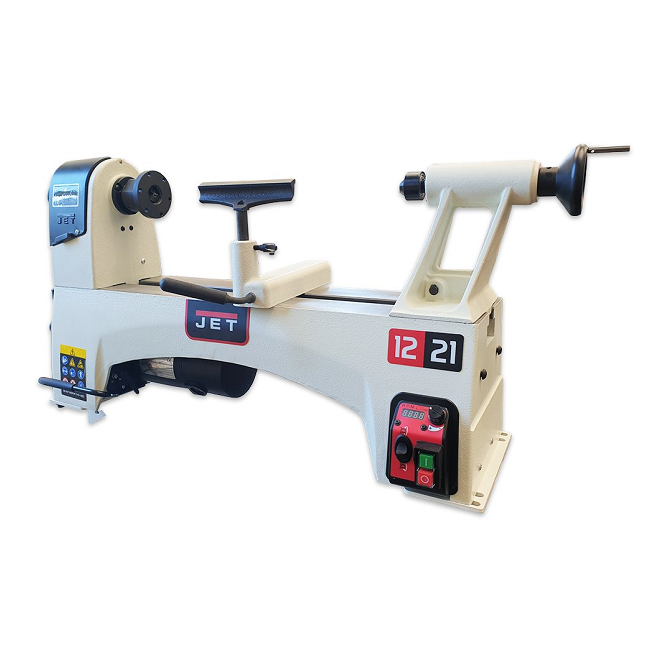

JET 12" x 21" Variable Speed Bench Mounted Woodturning Lathe.

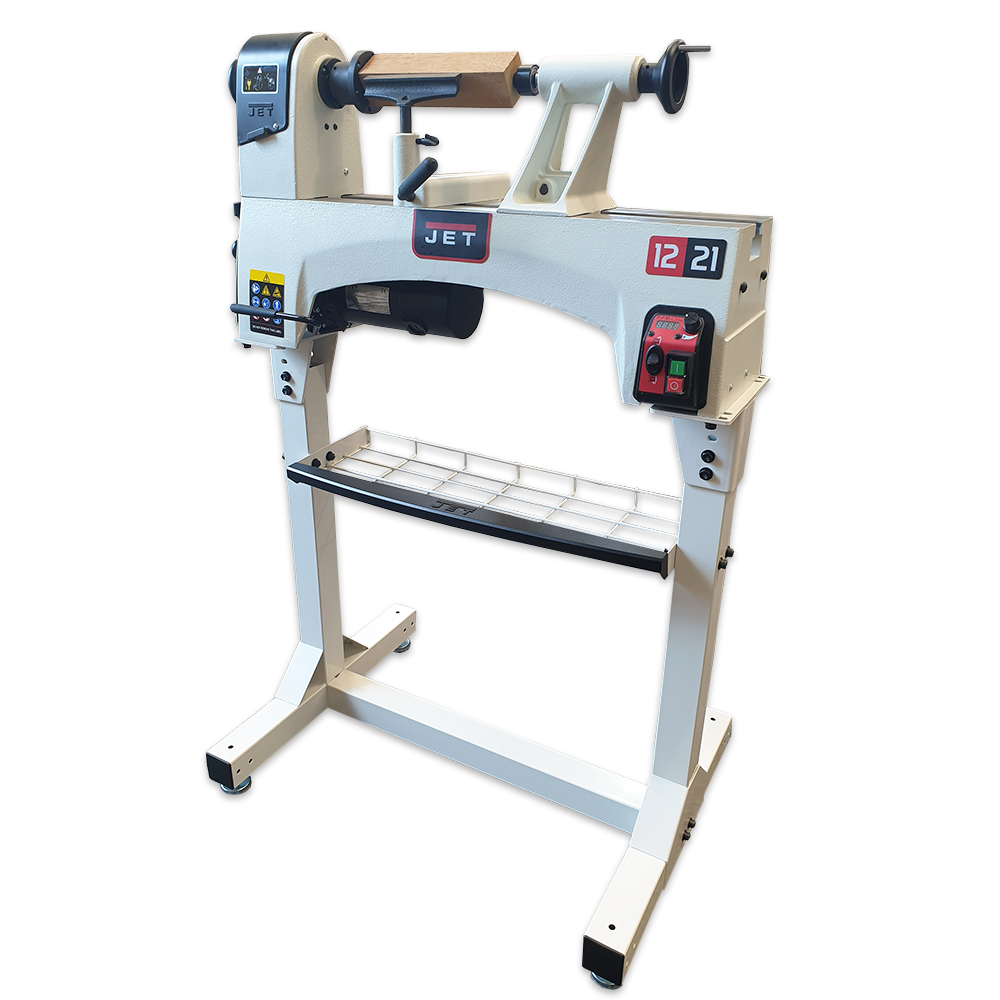

Optional stand available.
- Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces
- Infinitely variable speed control with 3 belt speeds, from 60 to 3600rpm
- Smooth shift from forward to reverse running, digital speed display
- The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces
- Smooth-running poly-v belt drive suitable for continuous operation, patented one-handed quick-tensioning belt system
- Integrated spindle indexing device 24 x 15° for hole patterns and decorative work
- Spindle lock on the front of the headstock to easily change the face plate and turning chuck
- Tailstock quill with 9mm hole allows material to be drilled through
- Three spindle speeds: 60–900/110–1800/220–3600
Lathe stand and timber not included.
Specifications
- Motor: 0,73kW (1 HP)
- Reverse turning
- Swing over bed: 318mm
- Swing over tool rest base: 240mm
- Centre distance: 500mm
- Spindle speeds (rpm): 60–3600, variable
- Spindle nose: M33 x 3.5
- Spindle index lock: 24 x 15°
- Headstock spindle taper: 2MT
- Tailstock spindle taper: 2MT
- Tailstock hole diameter: 9mm
- Tailstock ram travel: 57mm
- Steel support (ø/mm): 150+250/15.9
- Dimensions (LxWxH): 853mm x 280mm x 450mm
- Weight: 55kg
