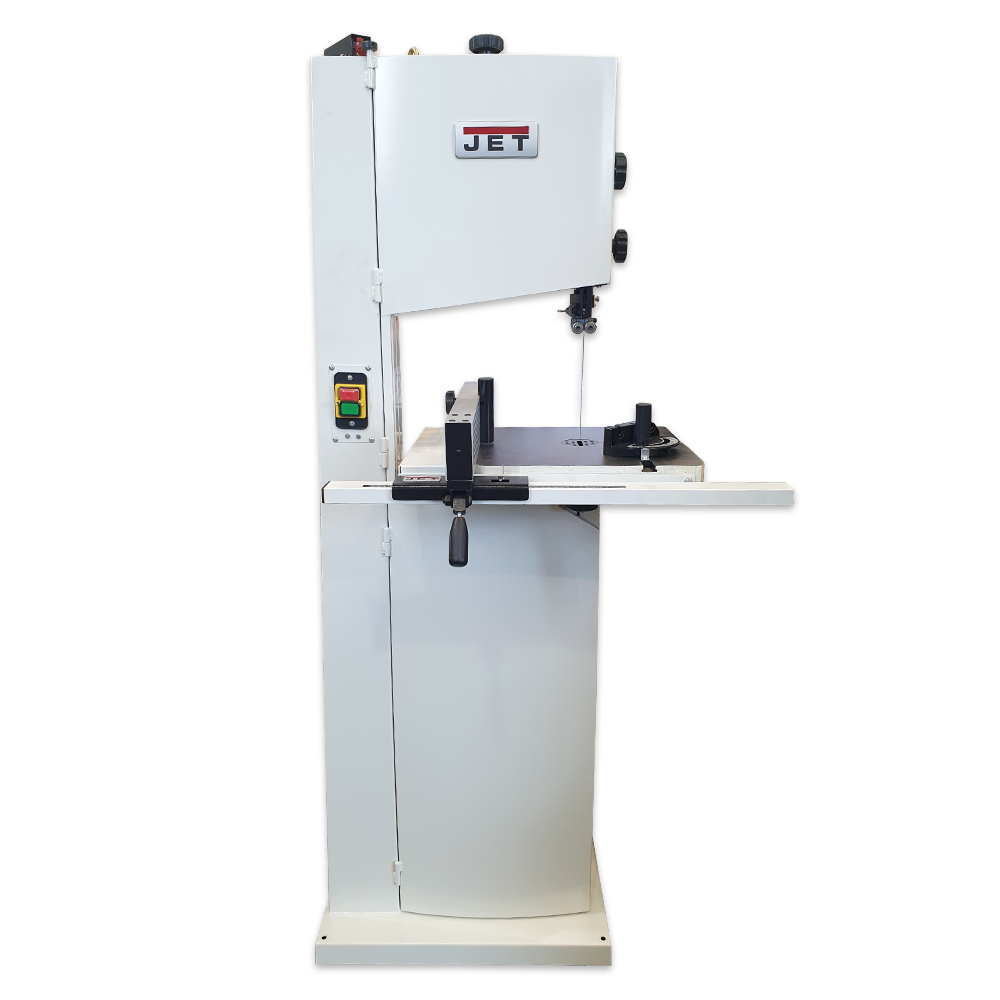

Designed for semi-heavy work, this bandsaw has balanced cast alloy blade wheels. It is also lockable and has a superb cast iron table which can tilt from -10° to +45°. The rip fence is supported at the front and rear of the table and extends slightly beyond the cast iron table.
- Cast iron table which can tilt from -10° to 45°
- Upper and lower ball bearing blade guides
- The mitre fence is ‘T’ slotted into the table for accuracy, safety and extended capacity
- Floor standing welded steel chassis
- Rip fence assembly with re-saw attachment
Specifications
- Motor (V/kW): 230/1.0
- Wheel diameter: 355mm
- Maximum cutting height/resaw capacity: 200mm/350mm
- Table tilt: -10° / -0° / -45°
- Table size: 500mm x 385mm
- Blade speed (m/min): 800
- Saw blade: 2,560mm
- Saw blade width min/max. (mm): 3/25
- Blade guide: Ball bearing
- Table height from floor: 1,055mm
- Dimensions: 830mm x 785mm x 1,750mm
- Weight: 97kg
- Dust port (diameter-mm): 50
