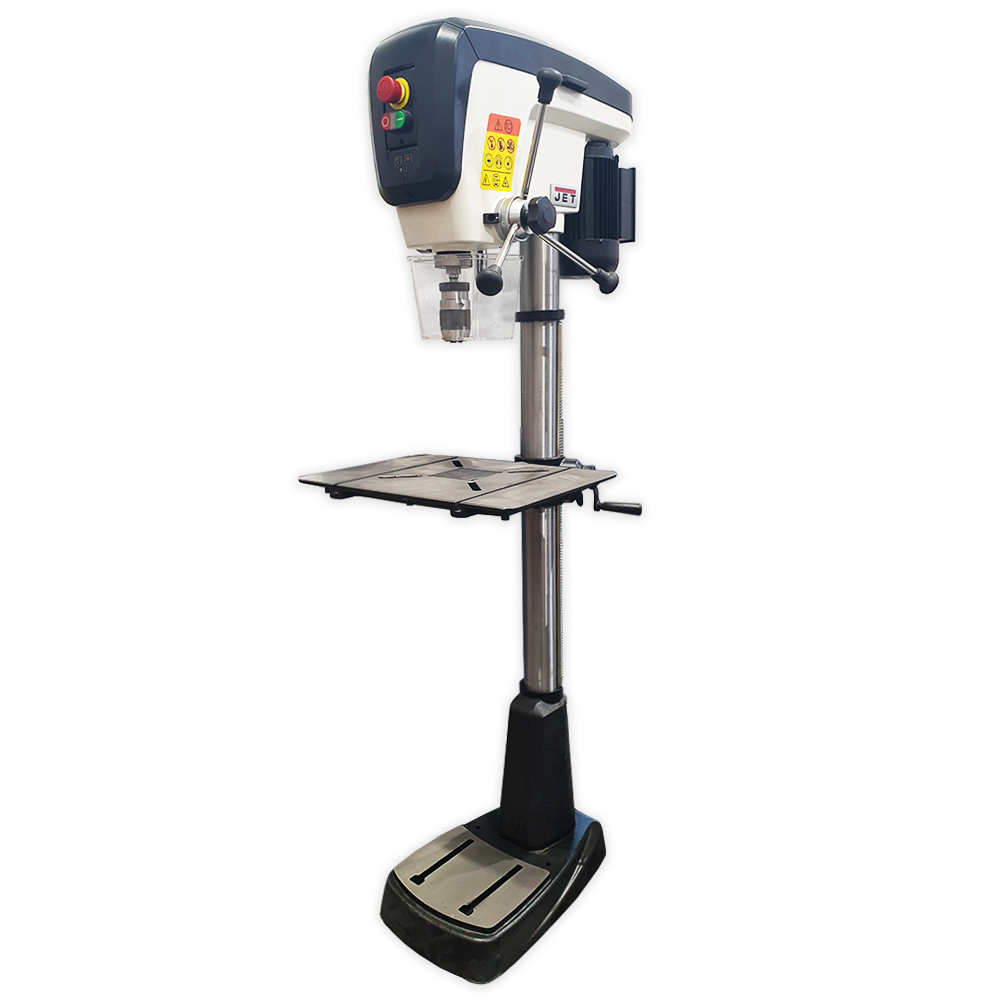

JET JDP-17 230v Floor Standing Drill Press
From a full 5” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14" x 19" work table provides plenty of support with an edge designed for easy clamping.
- Heavy-duty drill press developed specifically for wood workshops
- Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
- Flat table edge designed for using clamps
- Replaceable MDF table insert
- 127mm drill stroke with just one turn of the handwheel, for long drill holes
- Integrated drill depth stop for precision batch tasks
- Efficient 1.0kW induction motor and quiet poly-v belt drive
- One-handed belt tensioning for fast speed changes
- Xacta-X laser system easily identifies the drill centre
- Integrated long-life LED working lamp prevents shadows
- Large cast iron base for high stability
- Electric drill chuck protector, belt guard protection and emergency stop as standard
Specifications
- Motor: 1kW (0.75 HP) S1
- Laser class 2:
- Work light: LED
- Spindle speed range (rpm): 180 - 2900
- Number of spindle speeds: 16
- Spindle fixture: 2MT
- Keyless chuck (arbor MT2/B16): 1-16mm
- Spindle travel: 127mm
- Distance spindle to column: 215mm
- Spindle distance to table (max): 763mm
- Spindle distance to base (max): 1194mm
- Table size: 356 x 483mm
- Table tilt: 90° left/90° right
- Miter t-slot/distance: 13/270mm
- Column diameter: 80mm
- Dimensions: 723mm x 483 x 1679mm
- Weight: 86kg
