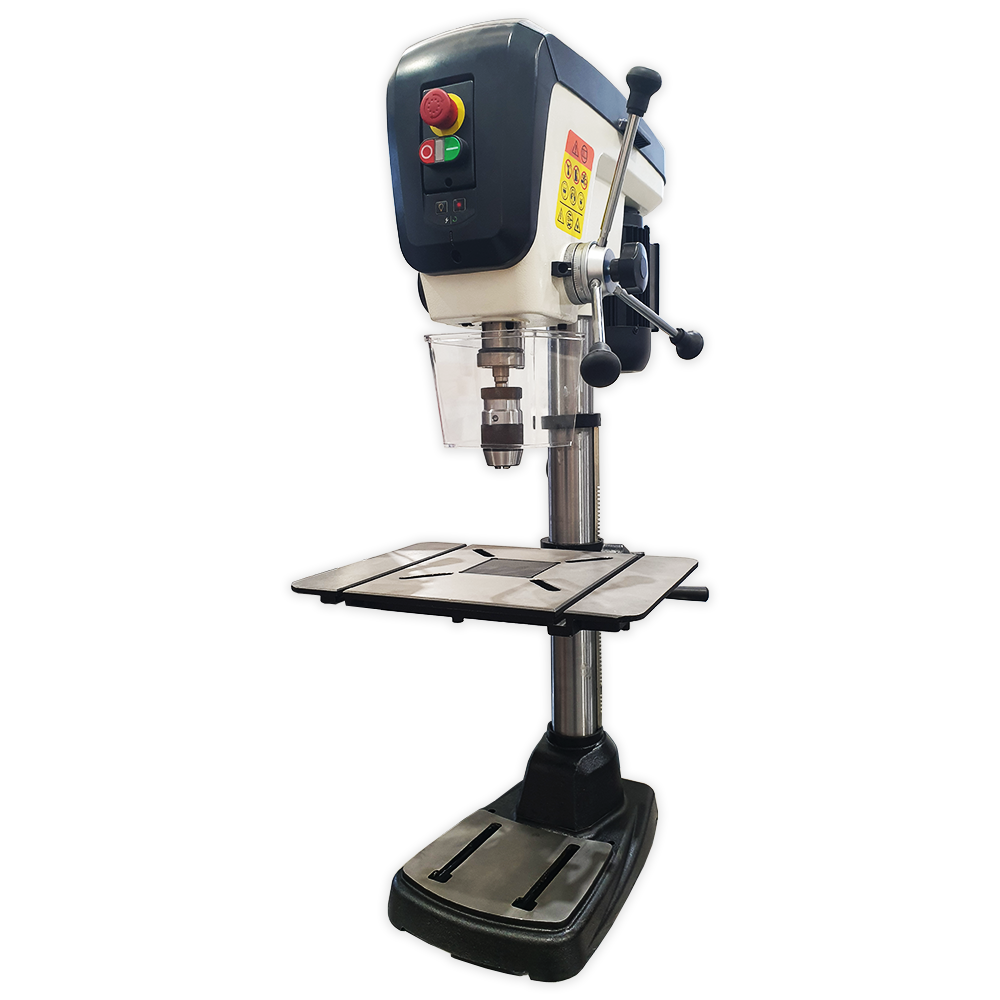

JET JDP-15B 230v Benchtop Drill Press
From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. It features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows.
- Heavy-duty drill press developed specifically for wood workshops
- Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
- Flat table edge designed for using clamps
- Replaceable MDF table insert
- Integrated drill depth stop for precision batch tasks
- Efficient 0.55kW induction motor and quiet poly-v belt drive
- One-handed belt tensioning for fast speed changes
- Xacta-X laser system easily identifies the drill center
- Integrated long-life LED working lamp prevents shadows
- Large cast iron base for high stability
- Electric drill chuck protector, belt guard protection and emergency stop as standard
Specifications
- Motor: 0.55kW (0.75 HP) S1
- Laser class 2: <1mW, 650mm
- Work light: LED
- Spindle speed range (rpm): 180 - 2900
- Number of spindle speeds: 16
- Spindle fixture: 2MT
- Keyless chuck (arbor MT2/B16): 1-16mm
- Spindle travel: 80mm
- Quill diameter: 47mm
- Distance spindle to column: 190mm
- Spindle distance to table (max.): 471mm
- Spindle distance to base (max.): 683mm
- Table size: 320mm x 454mm
- Table tilt: +/- 90°
- Miter t-slot/distance: 13/270mm
- Column diameter: 73mm
- Dimensions (DxWxH): 677mm x 434mm x 1115mm
- Weight: 71kg
